Release Date: 26 Dec, 2024

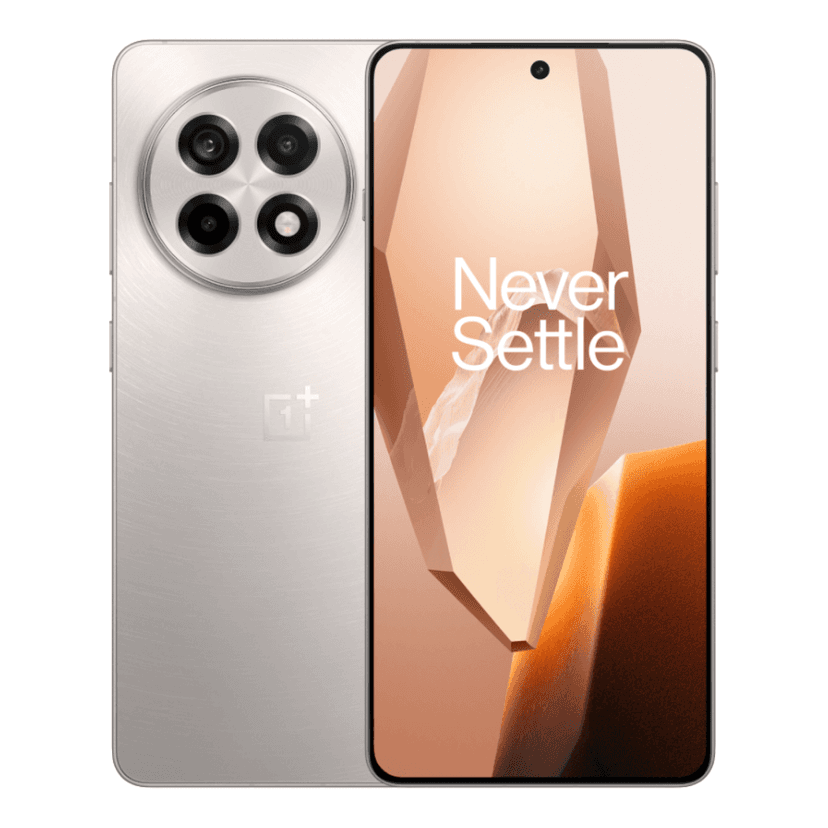

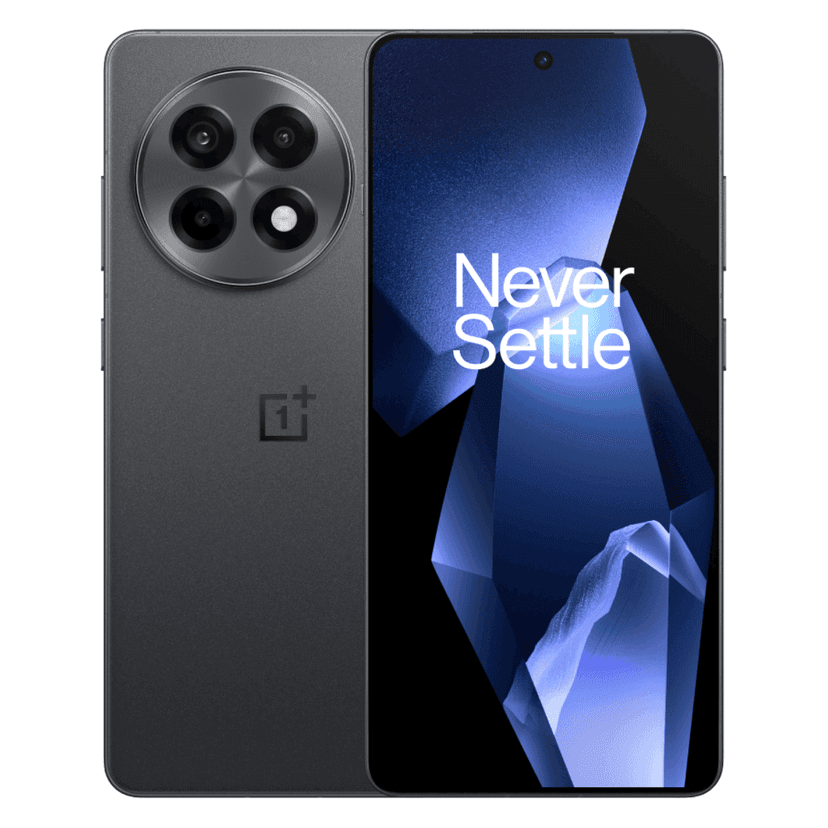

OnePlus Ace 5

91% SPEC SCORE

$342

The OnePlus Ace 5 comes with the latest Android 15, ensuring enhanced functionality and smooth multitasking. It features a extra-large 6.78-inches Crystal-clear Full HD+ display, perfect for both work and entertainment. Experience smooth transitions and quick responsive performance for everyday use. With a Power through... Read More

OnePlus Ace 5 Key Features

Display

6.78 inches (1264x2780 pixels) FHD

120Hz Refresh rate

Camera

50+8+2 MP (Triple Camera)

16 MP Selfie 4K Video

Hardware

Qualcomm SM8650-AB Snapdragon 8 Gen 3

Android 15

ColorOS 15

Ram & Storage

12GB + 256GB

16GB + 256GB

Battery

Si/C Li-Ion 6415mAh

Wired, 80W, 18W PD, 55% in 15 min, 100% in 35 min

Data Updated on: 01 May, 2026

OnePlus Ace 5 Price and Full Specifications

Display

Screen Size	6.78 inches, 111.7 cm² (~91.2% screen-to-body ratio)
Display Type	LTPO AMOLED
PPI	450 ppi
Refresh Rate	120Hz
Brightness	4500 nits (peak)
HDR	HDR10+, Dolby Vision
Protection	Crystal Shield Glass

Performance

Processor (SoC)	Qualcomm SM8650-AB Snapdragon 8 Gen 3
Fabrication process	4nm
CPU	Adreno (1x3.3 GHz Cortex-X4 & 3x3.2 GHz Cortex-A720 & 2x3.0 GHz Cortex-A720 & 2x2.3 GHz Cortex-A520)
CPU cores	Octa-core
GPU	Adreno 750

Storage

Memory	12GB + 256GB, 16GB + 256GB, 12GB + 512GB, 16GB + 512GB, 16GB + 1TB
Storage type	UFS 4.0

Camera

REAR CAMERA
Type	Triple camera
Primary	50 MP, 24mm (wide), 1.0µm, PDAF, (1/1.56") Aperture size: f/1.8 Focal length: 1.0µm
Secondary	8 MP, 16mm, 112˚ (ultrawide), 1.12µm, (1/4.0") Aperture size: f/2.2 Focal length: 1.12µm
Tertiary	2 MP, (macro) Aperture size: f/2.4
Features	Color spectrum sensor, Dual-LED flash, HDR, panorama
Video Recording	2160p @30/60fps 1080p @30/60/120/240fps gyro-EIS, OIS
Autofocus	Yes
OIS	Yes
FRONT CAMERA
Primary	16 MP, 24mm (wide), 1.0µm Aperture size: f/2.4 Focal length: 1.0µm
Features	HDR, panorama
Video Recording	1080p @30fps, gyro-EIS

Battery

Battery Capacity	6415mAh
Charging	80W, 18W PD, 55% in 15 min, 100% in 35 min Wired

Sound

Loudspeaker

Yes

Software & OS

Operating System	Android 15
OS UI	ColorOS 15

Design

Dimensions	161.7 x 75.8 x 8.1 mm (6.37 x 2.98 x 0.32 in)
Weight	206g
Color Options	Gray, White, Green
Water & Dust Resistance	Dust tight and water resistant (low pressure water jets)
Sim Card Types	Nano-SIM + Nano-SIM

Network

Technology	GSM / HSPA / LTE / 5G
2G bands	GSM 850 / 900 / 1800 / 1900 / CDMA 800
3G bands	HSDPA 800 / 850 / 900 / 1700(AWS) / 2100
4G bands	LTE 1 3 4 5 8 18 19 26 28 34 38 39 40 41 42 48 66
5G bands	5G 1 3 5 8 28 38 40 41 48 66 77 78
Speed	HSPA / LTE (CA) / 5G

Connectivity

WLAN	Wi-Fi 802.11 a/b/g/n/ac/6/7
Bluetooth	5.4, A2DP, LE, apTX HD, LHDC
Positioning	GPS (L1+L5), GLONASS (G1), BDS (B1I+B1c+B2a), GALILEO (E1+E5a), QZSS (L1+L5)
NFC	Yes
Radio	No
Infrared-port	Yes
USB Version	USB Type-C 2.0

Sensors & Features

Sensors

Fingerprint (under display, optical), accelerometer, gyro, proximity, compass

Additional Info

Models

PKG110
